Retrofit double-acting control unit and hydraulic top link for IHC 433, Bosch SB1

69 Views

Thanks! Share it with your friends!

You disliked this video. Thanks for the feedback!

Published Dec 6, 2022

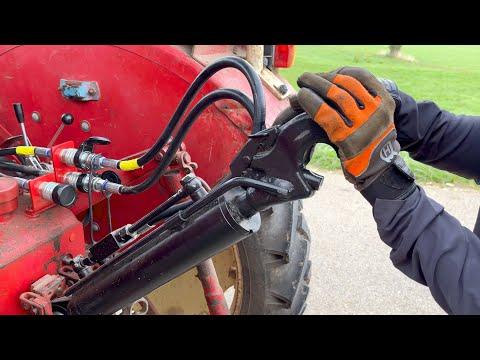

In this video, I retrofit a double-acting SB1 control unit and a hydraulic top link on our IHC 433 and briefly test them.

Here I bought the top link, all hydraulic parts and breakaway bracket:

https://hydraulikmeister24.de/de/advanced_search_result.php?categories_id=0&keywords=hydraulic+upper link&inc_subcat=1

Here I bought the double-acting control unit:

https://www.schlepper-teile.de/de/traktorteile/hydraulik/hydraulik_steuergeraete/flanschventile/index.pmode?detailid=4460

Timeline:

00:00 Preview upper link test

00:11 Introduction and content of the video

01:42 Disassembly of control units

04:22 Result dismantling and new seals

6:07 Intermediate assembly until new parts are there

07:31 Bent screws from control block

08:03 Final assembly of control units and hoses

08:43 Final result new control unit

09:34 Reason why screws were bent

10:40 New hydraulic top link

11:27 Test hydraulic top link with three-point fork carriage

12:20 Preview box rotator UPFR16

13:22 Farewell

My gear:

IHC 433 tugboat

Husqvarna 540i XP, 40 cm bar, Oregon 80TXL chain

Husqvarna 535i XP, 12" bar, Oregon 80TXL chain (rebuilt from 3/8 to .325)

2x Bli200 battery

1x Bli300 battery

Jansen FS35 Speed log splitter
